Function

For spraying of foliage, in orchard crops like pomegranate, orange, sweet lime and grapes.

2

Specifications

Type

Power tiller operated

Power source (hp)

12-14, power tiller

Discharge (I/min)

36

Speed (rpm)

950

Pressure (kgicm2)

30-35

Drive

Clutch pulley

Tank capacity (I)

200

Number of nozzles

6

Nozzle spacing

325

3

General information

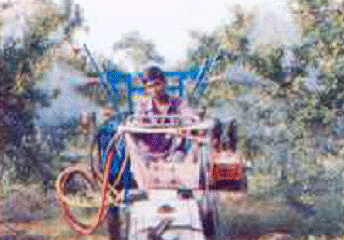

It consists of an HTP (horizontal triplex piston) pump, trailed type main chassis with transport wheels, chemical tank with hydraulic agitation system, cut off device and boom equipped with turbo nozzles. It is fitted with turbo nozzles with operating pressure of 9-18 kgicm2. It generates droplets of 100-150 micron sizes. Depending upon the plant size and their row spacing, the orientation of booms can be adjusted. The spray booms are mounted behind the operator.
