WATERSHED MANAGEMENT

Watershed is defined as a geohydrological unit draining to a common point by a system of drains. All lands on earth are part of one watershed or other. Watershed is thus the land and water area, which contributes runoff to a common point.

A watershed is an area of land and water bounded by a drainage divide within which the surface runoff collects and flows out of the watershed through a single outlet into a lager river ( or ) lake.

TYPES OF WATERSHED

Watersheds is classified depending upon the size, drainage, shape and land use pattern.

  • Macro watershed (> 50,000 Hect)
  • Sub-watershed (10,000 to 50,000 Hect)
  • Milli-watershed (1000 to10000 Hect)
  • Micro watershed (100 to 1000 Hect)
  • Mini watershed (1-100 Hect)

Objectives of watershed management

The different objectives of watershed management programmes are:

1. To control damaging runoff and degradation and thereby conservation of soil and water.
2. To manage and utilize the runoff water for useful purpose.
3. To protect, conserve and improve the land of watershed for more efficient and
sustained production.
4. To protect and enhance the water resource originating in the watershed.
5. To check soil erosion and to reduce the effect of sediment yield on the watershed.
6. To rehabilitate the deteriorating lands.
7. To moderate the floods peaks at down stream areas.
8. To increase infiltration of rainwater.
9. To improve and increase the production of timbers, fodder and wild life resource.
10. To enhance the ground water recharge, wherever applicable.

Factors affecting watershed management

a) Watershed characters

i) Size and shape
ii) Topography
iii) Soils
iv) Relief

b) Climatic characteristic

i. Precipitation
ii. Amount and intensity of rainfall

c) Watershed operation

d) Land use pattern

i. Vegetative cover
ii. Density

e) Social status of inhability

f) Water resource and their capabilities.

Watershed management practices
1. Interms of purpose
1. To increase infiltration
2. To increase water holding capacity
3. To prevent soil erosion
2. Method and accomplishment

In brief various control measures are:
1. Vegetative measures ( Agronomical measures)
1. Strip cropping
2. Pasture cropping
3. Grass land farming
4. Wood lands
2. Engineering measures ( Structural practices 0
1. Contour bunding
2. Terracing
3. Construction of earthern embankment
4. Construction of check dams
5. Construction of farm ponds
6. Construction of diversion
7. Gully controlling structure
1. Rock dam
2. Establishment of permanent grass and vegetation
8. Providing vegetative and stone barriers
9. Construction of silt tanks dentension
Influence of soil conservation measures and vegetation cover on erosion, Runoff and Nutrient loss.


Rainwater harvesting is the main component of watershed management. Some of the watershed management structures are as follows.


BROAD BEDS AND FURROWS

a. FUNCTION
To control erosion and to conserve soil moisture in the soil during rainy days.

b. GENERAL INFORMATION

The broad bed and furrow system is laid within the field boundaries. The land levels taken and it is laid using either animal drawn or tractor drawn ridgers.

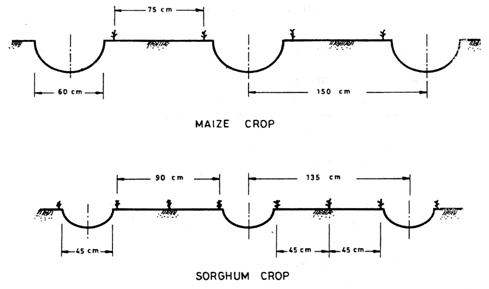

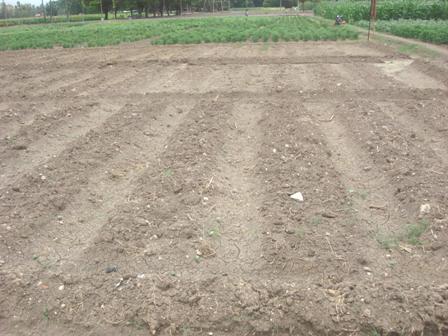

BROAD BEDS AND FURROWS



c. COST
Approximate cost for laying beds & furrows is Rs.1800 / ha.

d. SALIENT FEATURES
  • Conserves soil moisture in dryland
  • Controls soil erosion.
  • Acts as a drainage channel during heavy rainy days.

2. CONTOUR BUND
a. FUNCTION
To intercept the run off flowing down the slope by an embankment.

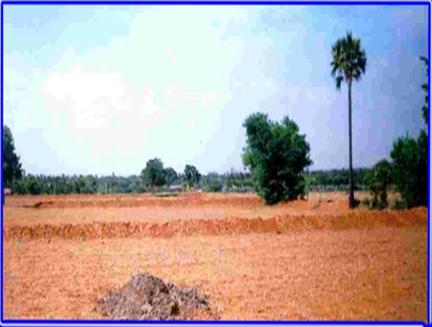

CONTOUR BUND




Contour bunding

Source: http://terra-agro.com/Company/bhj/images/wasteland1.jpg

b. GENERAL INFORMATION

It helps to control run off velocity. The embankment may be closed or open, surplus arrangements are provided wherever necessary.

c. COST

Approximate cost of laying contour bund is Rs.1400 / ha.

d. SALIENT FEATURES

i. It can be adopted on all soils
ii. It can be laid upto 6% slopes.
iii. It helps to retain moisture in the field.

3. BENCH TERRACING

a. FUNCTION

It helps to bring sloping land into different level strips to enable cultivation.







Text Box: 4. PUERTORICO TYPE TERRACE

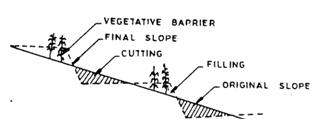

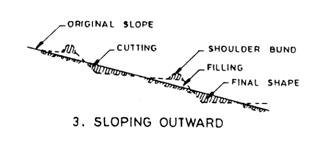

Text Box: TYPES OF BENCH TERRACES


TYPES OF BENCH TERRACES

b. GENERAL INFORMATION

It consists of construction of step like fields along contours by half cutting and half filling. Original slope is converted into level fields. The vertical & horizontal intervals are decided based on level slope.

c. COST
Approximate cost for laying the terrace is Rs.5000 / ha.

d. SALIENT FEATURES

  • Suitable for hilly regions.
  • The benches may be inward sloping to drain off excess water.
  • The outward sloping benches will help to reduce the existing steep slope to mild one.
  • It is adopted in soils with slopes greater than 6%


4. MICROCATCHMENTS FOR SLOPING LANDS
a. FUNCTION

It is useful for insitu moisture conservation and erosion control for tree crops.

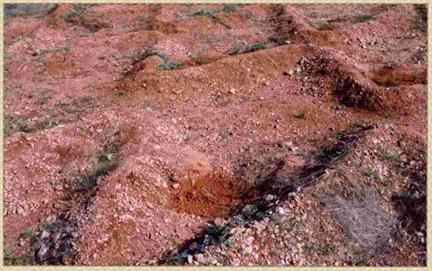

   MICROCATCHMENTS



 b. GENERAL INFORMATION

Technique

Storage capacity
per unit  (m3)

Annual run-off contribution to soil moisture Additional water stored per ha (m3)

Estimated surface Run-off control
(%)

Triangular catchments (V-Bunds)

13

5200

80

Crescent bunds

10.2

4080

73

c. COST

Technique

Cost/ha (Rs.)

Triangular catchments (V-Bunds)

6000-7000

Crescent bunds

2500-3000

d. SALIENT FEATURES

  • Slope ranges from 2 –8%
  • Soil type – Light to moderate texture
  • Insitu moisture conservation with staggered planting
  • Suitable for dry land Horticulture & Agroforestry
  • Bund height – 30 to 45 cm.

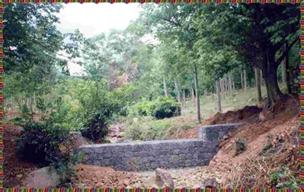

5. Check dam

Salient features

  • A low weir normally constructed across the gullies
  • Constructed on small streams and long gullies formed by erosive activity of flood water
  • It cuts the velocity and reduces erosive activity
  • The stored water improves soil moisture of the adjoining area and allows percolation to recharge the aquifers
  • Spacing between the check dams water spread of one should be beyond the water spread of the other
  • Height depends on the bank height, varies from a metre to 3 metre and length varies from less than 3m to 10m
  • Cost varies from Rs. 40000/- to Rs. 100000/- per unit

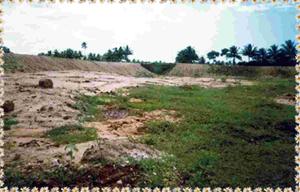

6. Percolation pond:

Function
To augment the ground water recharge

Salient features

  • Shallow depression created at lower portions in a natural or diverted stream course
  • Preferable under gentle sloping stream where narrow valley exists
  • Located in soils of permeable nature
  • Adaptable where 20-30 ground water wells for irrigation exist with in the zone of influence about 800 – 900m
  • Minimum capacity may be around 5000 m3 for the sack of economy
  • Also act as silt detention reservoir
  • Cost varies from Rs. 60000 to 150000 per unit

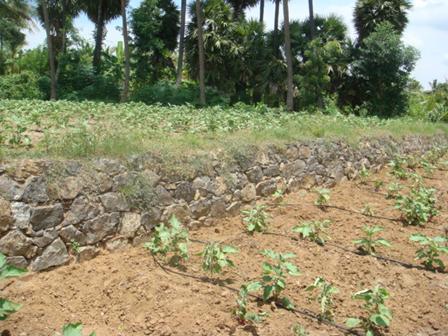

7. Stone Barriers
