1. |
Function |
: |
For thermal applications of small and medium scale industries |
2. |
Specification |
: |
|
|
i. Rate of consumption of feedstock |
: |
135 kg/h |
|
ii.Efficiency of the system |
: |
50% |
|
iii. Holding capacity of system |
: |
250 kg |
|
iv. Specific gasification rate |
: |
300 kg/m2 -h |
3. |
General Information |
: |

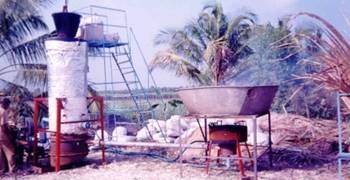

The gasifier has a cylindrical reactor of diameter 0.7 m and height of 2 m. Bagasse consumption is in the range of 105 to 180 kg/h as compared to 60 to 120 kg/h of briquettes. 2 m3 of gas can be obtained from one kg of fuel. For one batch of gur making, the time of operation is about 2.5 hours. |
4. |
Cost of the unit (approx) |
: |
Rs.2,50,000/- |
5. |
Cost of operation |
: |
Rs. 250/h |
6. |
Salient features |
: |
|
Producer gas generation of 250 m3/h, is suitable for boiling of cane juice in gur industries. |
|
Saving in fuel is 40 to 50%. |
|
Saving in time is 42 to 46%. |
|
