 Solar Water Pumps

1.

Function

:

Drinking water supply for small habitations


2.

Specification


Type
Capacity
Water Level Depth (maxi)  m
Discharge Rate / day (litres)
(i)DC Surface
900 Wp – 1 Hp
14
75 000


1800 Wp – 2 Hp

14

1 40 000

(ii)AC submersible
1800 Wp – 0.75 Hp
50
50 000

i. Collector area

:

2.4 x 1.8 m

ii. Type and Model

:

Step type, TNAU

iii. Number of trays

:

10 in five steps

iv. Insulation (Bottom)

:

Glass wool, 10 cm. thick

v. Motive power

:

Natural convection

3.

General Information

:

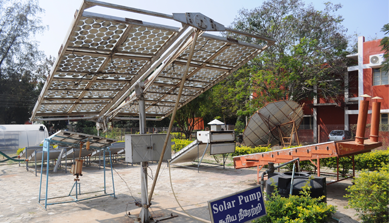

A solar PV water pumping system consists of a number of solar PV modules connected in series - parallel combination to generate sufficient power to operate a motor pump. The solar PV modules are mounted on a metal frame in a manner that the mounting frame can be turned / tilted to ensure that the modules keep facing the sun throughout the day. The system does not have any storage battery since power generated is used directly then and there. The SPV array converts the solar energy into electricity which is used for running the motor pump set. The pumping system can draw water from the open well / bore well or stream / pond or canal. The normal discharge rates of water for different types of pumps are given above.

5.

Salient features

:

Drinking water supply for small habitations
Horticulture farms, orchards, vineyards, gardens and nurseries
Agro forestry and plantations
Dairy, poultry and sheep farm
Aqua culture, fish farming

Contact us

Professor and Head,
Department of Bio-Energy,
TNAU, Coimbatore-641003.
Phone: 0422-6611276
