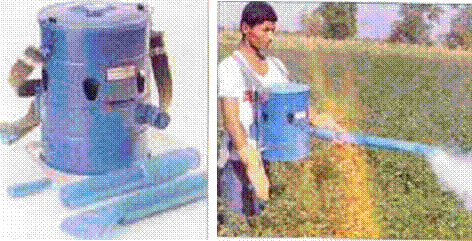

Hand Rotary Duster

1

Function

:

For control of pests and diseases by use of chemicals in the dust forms in nursery, vegetable gardens, field crops, tea and coffee plantations, green houses, glasshouses and godowns.

2

Specifications

:

Type

:

Manually operated

Overall length (mm)

:

280

Overall width (mm)

:

330

Overall height (mm)

:

330

Weight (kg)

:

3.5

Hopper capacity (1)

:

5

Field capacity (ha/ day)

:

0.6 (for field crops)

3

General information

:

The hand rotary duster is available in two models, shoulder mounted and belly mounted. It is a common type of duster being used by the farmers. The duster consists of a hopper, fan/blower, rigid/flexible discharge pipe, reduction gearbox, rotating handle, shoulder straps, and metering mechanism. The duster has mechanical agitator connected to the gearbox placed in the hopper, which chums the chemical and prevent clogging of the outlet. The adjustable orifice plate mounted below the hopper outlet controls the application rate. For operation, the hopper is filled 1/2 to 3/4th of the capacity of the hopper. This is mounted on the shoulder/belly with the help of adjustable straps. The discharge pipe fitted with spoon type deflector is directed towards the target continuously rotating the handle. The chemical in dust/powder form drops from the hopper in the discharge pipe having an air stream created by the blower. These dust particles emerging in, the form of cloud from the discharge pipe are carried to the plant where these settle on the leaves, stems and other parts.
