3. |
General Information |
: |

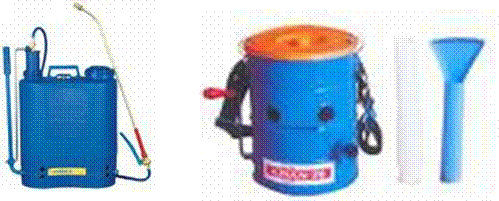

The hand sprayer is a small capacity pneumatic sprayer. It consists of chromium plated brass tank having a capacity of 0.5 to 3 litres (one litre is more common) which is pressurized by a plunger pump. The air pump remains inside the tank. The sprayer has a short delivery tube to which a cone nozzle is attached. In some models, the nozzle is attached at the top of the tank with flow spring actuated lever, which regulates the flow of the spray liquid. For spraying, the tank is usually filled to three-fourths capacity and pressurized by air pump. The compressed air causes the agitation of the spray liquid and forces it out, on operation of the trigger or shut off type valve. Usually the chemicals with suspension characteristics cannot be effectively sprayed with this type of sprayer. For spraying wettable powders the sprayer is shaken frequently to prevent settling of the chemical. For operation, the spray nozzle is directed to the target after charging. It is fitted with mist spray nozzle with gooseneck bend. The pump assembly is made of brass and operated by one person. |
